| Main Features | |
|---|---|
| MIDI Control | Full assignable MIDI controls |
| DVS Control | rekordbox、Serato DJ Pro |
| Accessories | Power Cord Quick Start Guide Precautions for Use Warranty (for some regions) |
| Specifications | |
| Max. external dimensions (W × D × H) | 302.0 × 437.5 × 107.9 mm |
| Main unit weight | 8 kg |

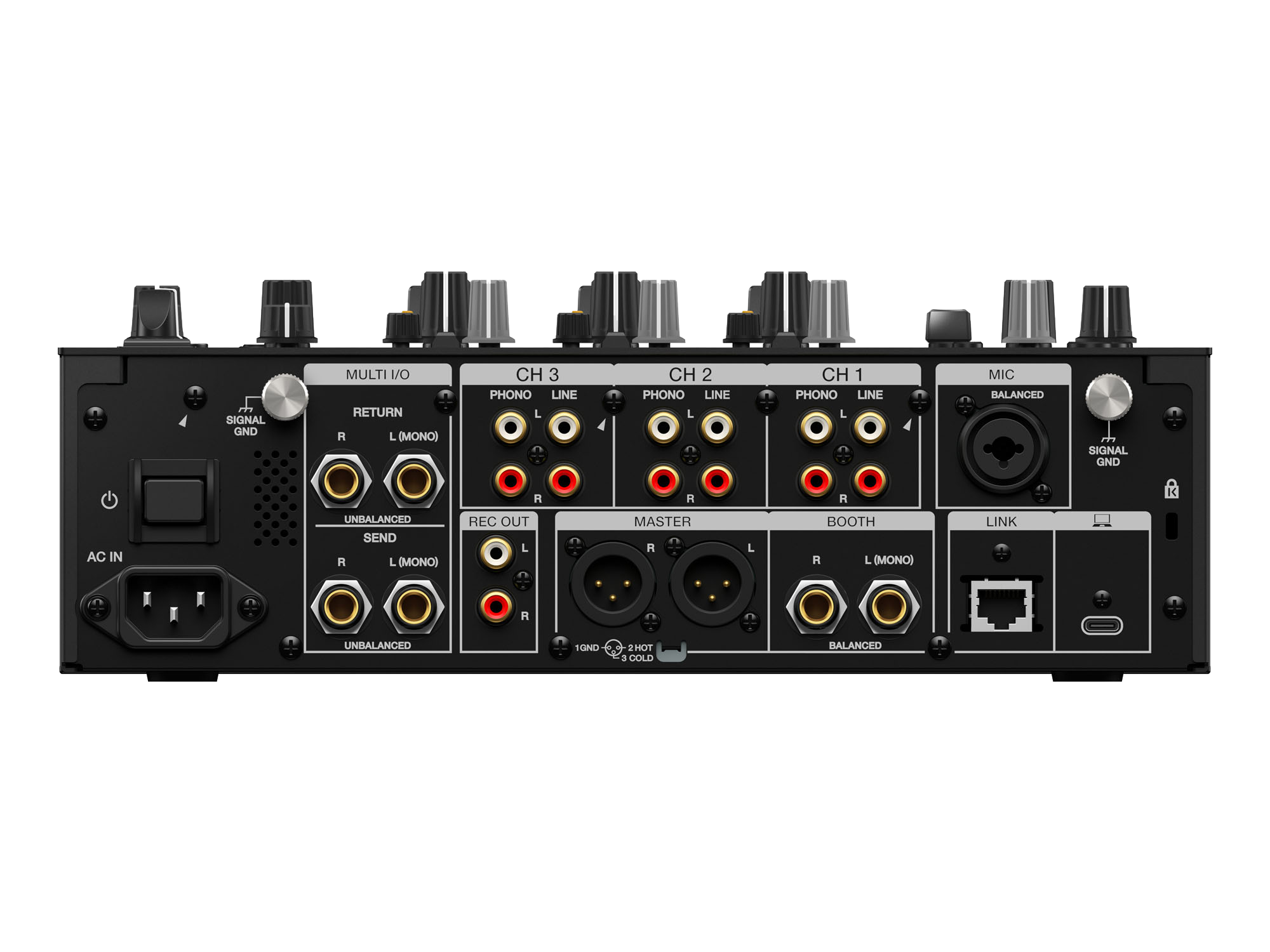

| Input / Output terminals | |
| Input | PHONO × 3 (RCA) LINE × 3 (RCA) MIC × 1 (XLR / 1/4-inch TRS jack) |
| Output | MASTER × 1 (XLR) BOOTH × 1 (1/4-inch TRS jack) REC OUT × 1 (RCA) PHONES × 2 (1/4-inch / 3.5 mm) |
| SEND/RETURN | SEND × 1 (1/4-inch TS jack) RETURN × 1 (1/4-inch TS jack) |
| LAN | LAN × 1 |
| USB | USB Type-C × 2 (MULTI I/O × 1, PC/Mac × 1) |
| Audio | |
| Sampling Rate | 96 kHz |
| A/D Converter | 32 bit |
| D/A Converter | 32 bit |
| S/N Ratio | LINE 105 dB / PHONO 88 dB / MIC 79 dB |
| EQ | 4 Band |
