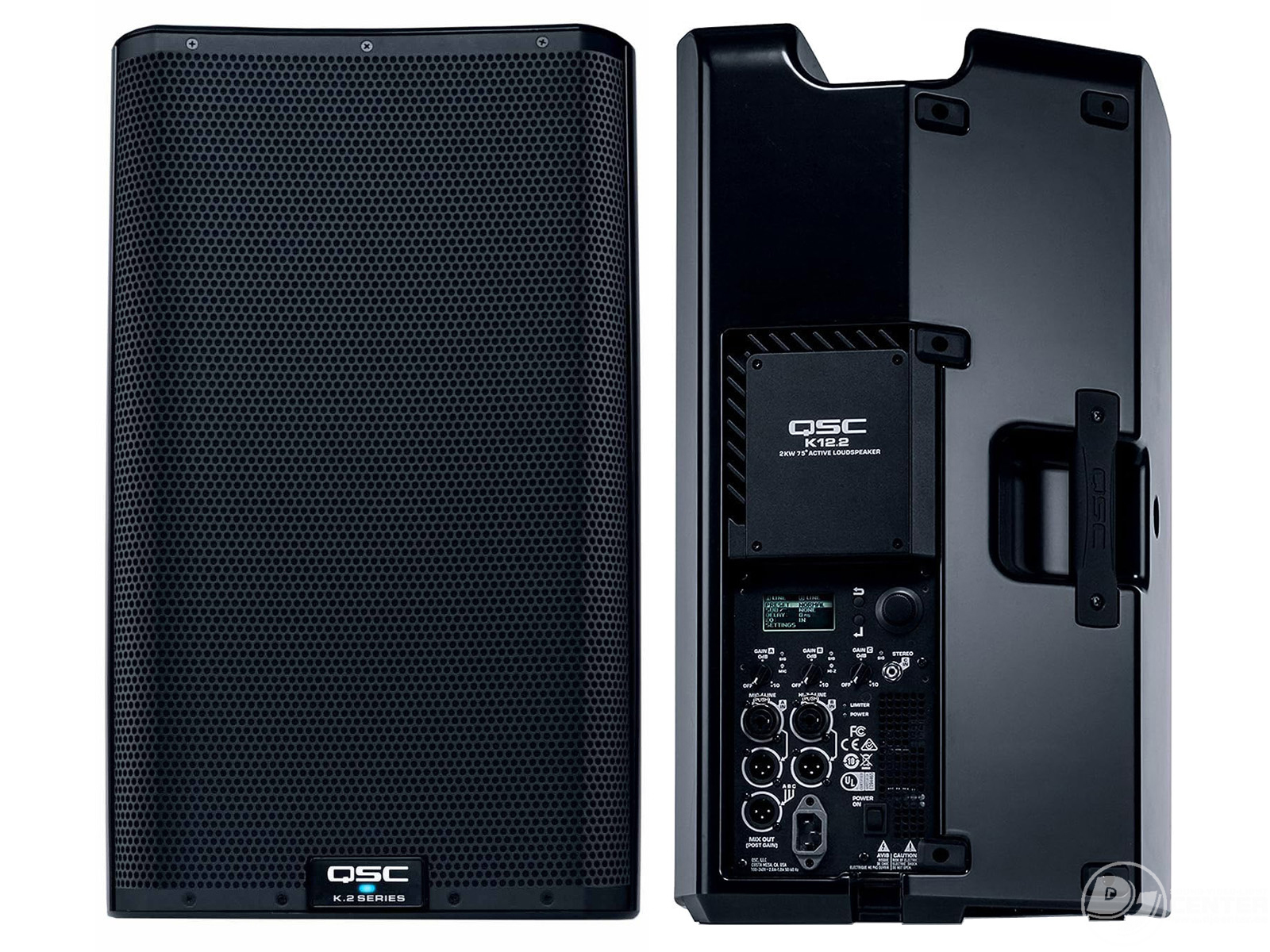

Model	K12.2
Configuration	Multi-purpose, 2-way powered loudspeaker
LF Transducer	12-inch (30,5 cm), cone
HF Transducer	1.4-inch (3,56 cm) titanium diaphragm compression driver
Frequency Response (-6 dB)	50 Hz - 20 kHz
Frequency Range (-10 dB)	45 Hz - 20 kHz
Nominal Coverage Angle	75° Axisymetric
Maximum Rated SPL¹Amplifier Cooling	132 dB @ 1 M, peak 126 dB @ 1 M, continuous Class D Peak: 1800 W (LF), 225 W (HF) Low-noise, variable speed fan
Controls	Power 3 x Level Rotary encoder (push) 2 x selection buttons
Indicators	Monochrome LCD Display 1.75-inch x 1-inch (45 mm x 25.4 mm) 2 x Power LED (front and rear) 3 x Input Signal LED Input A Mic selected LED Input B Hi-Z selected LED Limiter active LED
Connectors	2 x locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input 1 x 3.5 mm TRS (Stereo Input) 2 x XLR/M (Loop-thru Output) 1 x XLR/M (Mix Output) 1 x locking IEC power connector
AC Power Input	Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power²	100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
AC Power Consumption - Standby	.2A at any voltage
Enclosure Details
Enclosure	Impact Resistant ABS
Attachment Points	2 x M10 threaded inserts plus Pull-Back
Color	Black (RAL 9011)
Grille	18 Gauge powered coated steel, internal cloth lining
Dimensions (HxWxD)	60,2 cm x 35,6 cm x 35,0 cm
Net Weight	17.7 kg
Shipping Weight	21.7 kg
Regulatory	CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories	K12 Tote
